A cracked screen doesn’t necessarily mean that your iPad Air 2 is useless. Sure, Apple can fix it, but it’ll set you back a cool $379.00 plus $6.95 shipping and tax - regardless of whether or not you have a warranty. Fortunately, you don’t have to shell out all your hard-earned money on a new iPad Air or repair service – you can fix it yourself! It only takes a few minutes of your time!

What you’ll need:

Plastic Triangle Opening Tool
Small Phillips Screwdriver
Fine Tip Curved Tweezers
Multi-Purpose Heat Gun
iPad Air 2 Display Assembly (LCD and Touch Screen) Replacement

Make sure the iPad Air 2 is completely powered off. You can turn off your iPad by holding down the power button located on the side of the tablet until you’re prompted to slide to the right on the screen.

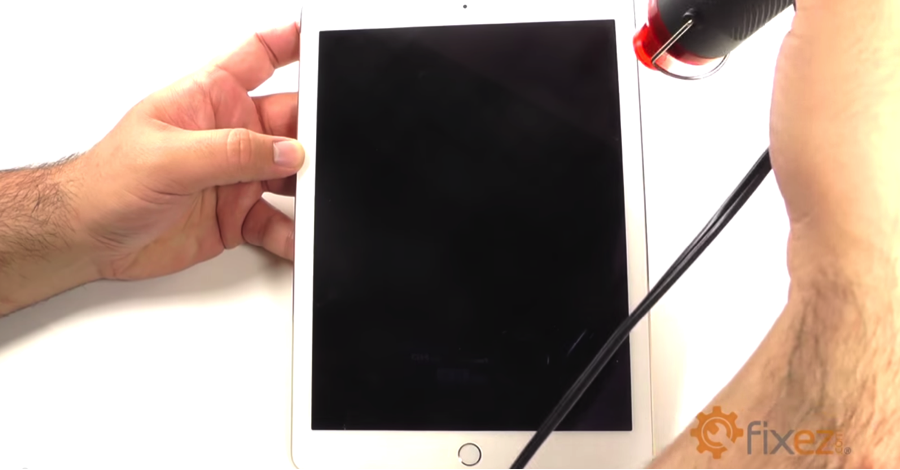

Using your heat gun, gently heat the edges of the iPad’s display assembly, which consists of the LCD and touch screen/front panel. This part is a bit delicate, because too little heat will not loosen the adhesive, and too much heat can burn the device (or your hands!).

how to replace ipad screen

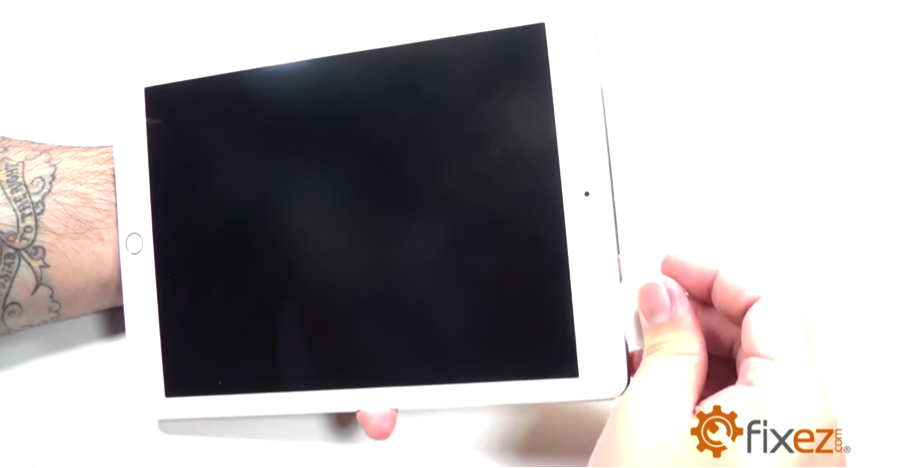

Once you’re done heating around the edges of the display assembly, insert the plastic triangle opening tool in the seam between the display assembly and the aluminum back housing. Work your way around the perimeter to release the display assembly from the securing adhesive. If you feel any resistance, don’t force it! Instead, use the heat gun again to completely loosen the adhesive and try again.

repair ipad air 2 screen

Once you loosen the display assembly, it’s important that you pull it up and away from the rest of the iPad Air 2 from the side that’s closest to the front-facing camera (the top), since the display is still secured to the base of the iPad (near the home button assembly).

how to replace ipad air 2 screen

Remove the three small Philips screws from the metal shield near the bottom of the iPad (which is pictured at the top in the photos). Once you’ve removed the shield, you’ll find the LCD and touch screen assembly connections.

how to replace ipad screen

Remove the display assembly connections with your Fine-Tip Curved Tweezers. The first (larger) connection is attached to the visible ribbon.

how to fix ipad air 2 screen

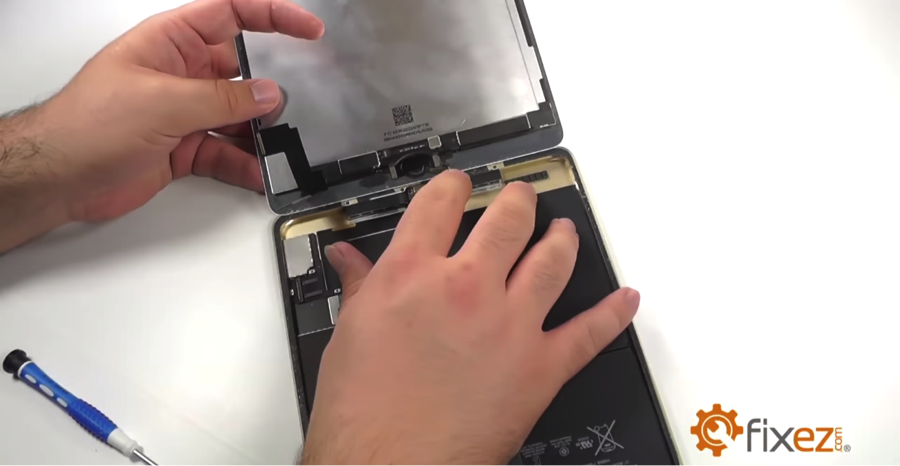

Once you’ve removed the first connection on the top ribbon, remove the other two (smaller) connections on the second ribbon. Once these are removed, you can lift up and completely remove the display assembly from the aluminum back housing.

fixing ipad air 2 lcd

how to replace ipad air 2 assembly

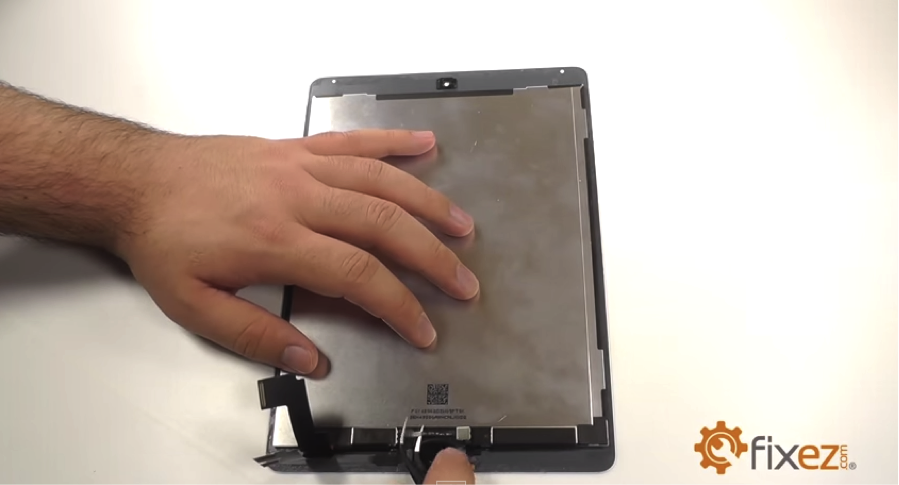

Next, you’ll need to remove the home button. Lift the clasp located just above the home button and remove it using your Fine Tip Curved Tweezers.

fixing ipad screen tutorial

repair boken ipad screen tutorial

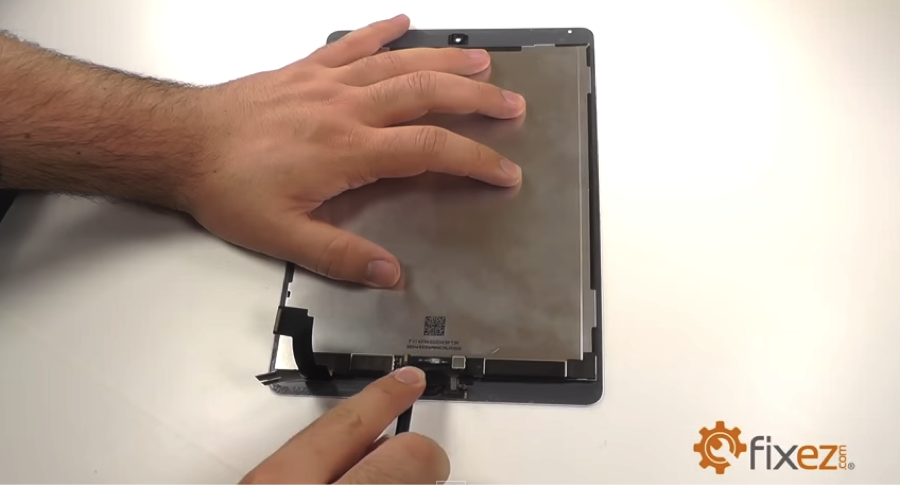

Once you’ve removed the clasp, use your Heat Gun to heat the home button bracket.

tutorial for ipad air 2 screen replacement

tutorial for ipad air 2 screen repair

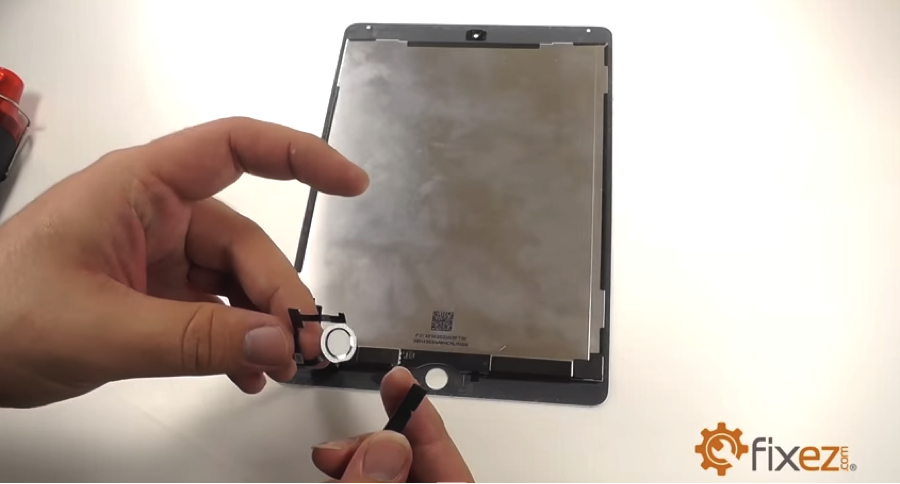

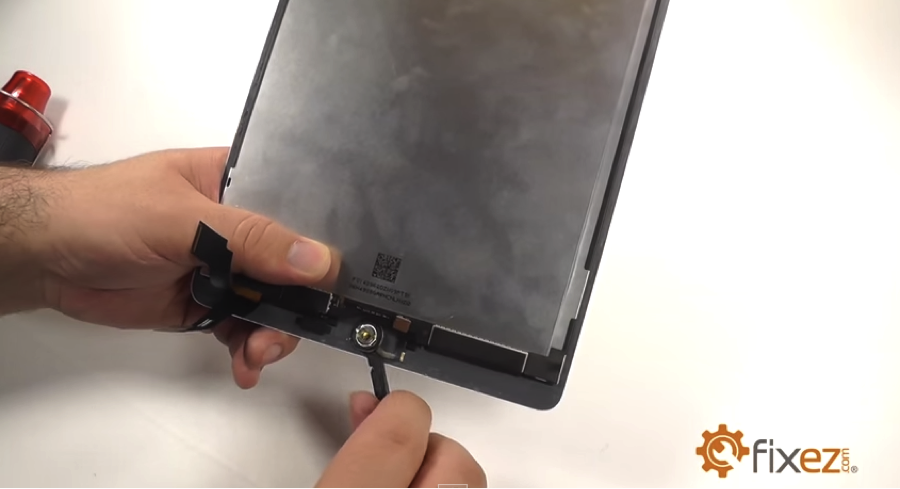

After you’ve removed the bracket, you can pry off the home button assembly using a Nylon Spudger.

how to fix ipad air 2 screen

how to replace ipad air 2 screen

You’re ready to replace the display assembly! Work backwards to install the new display assembly to the aluminum back housing. Start by connecting the LCD and touch screen connections. Once those are connected, screw in the protective metal plate that you removed with the three small Phillips screws. Gently secure the new display assembly to the aluminum back housing with new adhesive, and you’re good to go!
